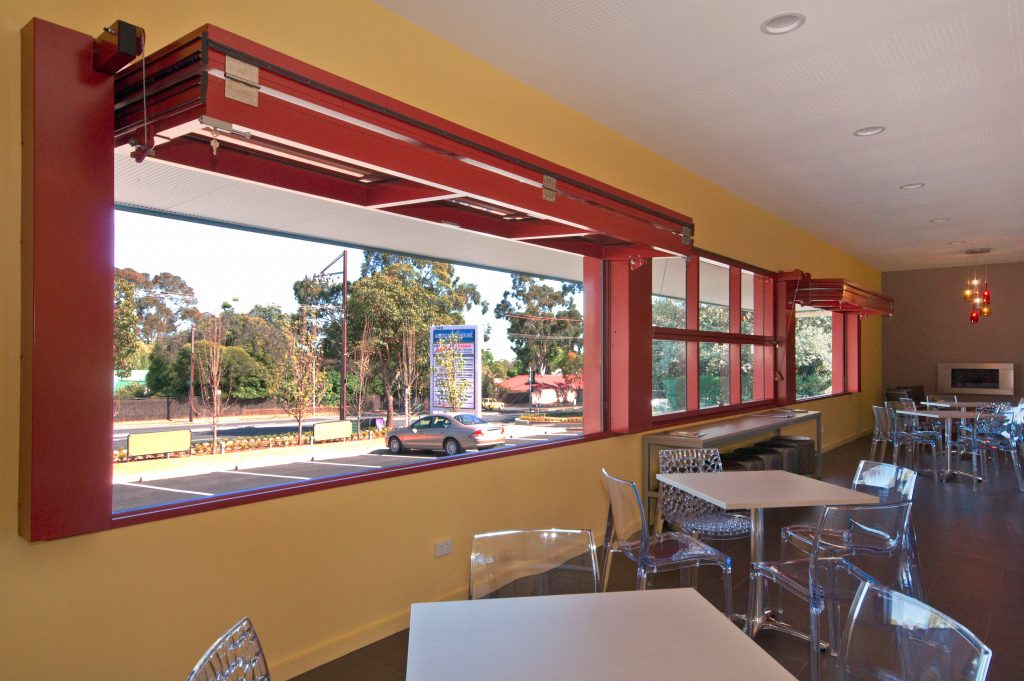

We especially designed our new Zero Line Folding Window for servery windows that are on the property boundary line. Because they swing in and upwards to open overhead, these windows assure full counter access. With no tracks across the bench or windowsill, we invite clear, easy-to-clean spaces.
Smartech supplies this type of window in manual operation only. The window is unlocked from inside and pulled inwards at the hinge line. Then it is raised overhead. All Smartech Folding System products are counterbalanced and easy to operate.
We recommend you use this elegant system in your cafe, restaurant or entertainment venue. It is suitable for low use residential and commercial applications.
| STANDARD RANGE SIZES | |
|---|---|
| HEIGHT | UP TO 2200mm |
| WIDTH | UP TO 3800mm |
NOTE: These sizes apply to the standard range, N1 Wind Classification. All widths are subject to variation based on the Wind Classification, cladding design and height required.
Should your requirements sit outside our standard range we also specialize in custom design manufacture to suit your needs and specifications, whatever they may be.

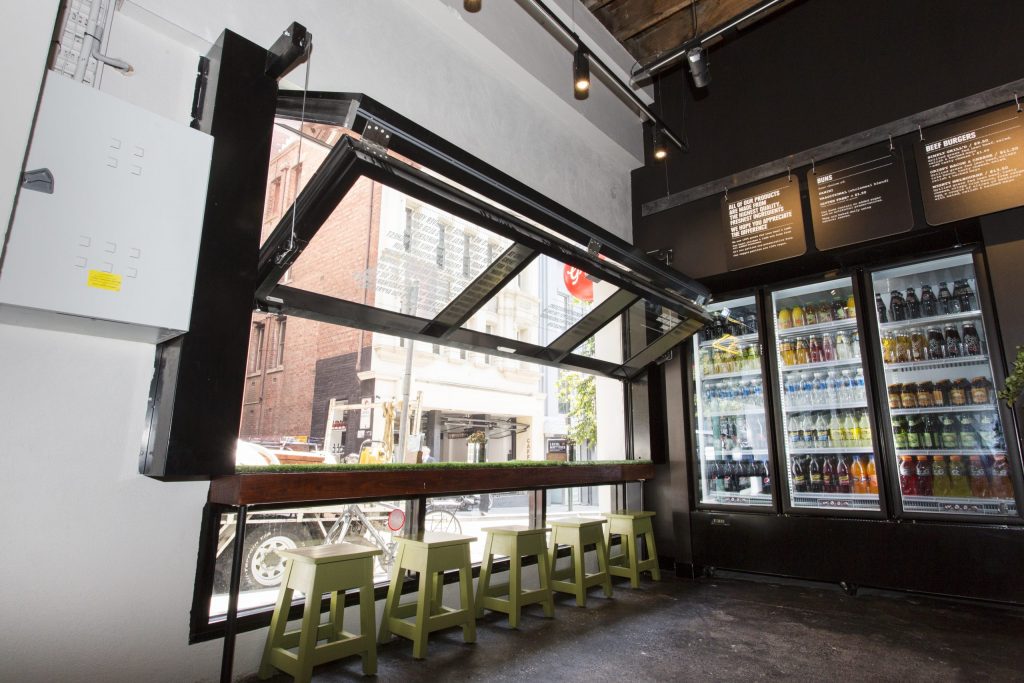

Smartech’s Zero Line Folding Window in Grill’d Burgers’ trendy interior.
| SUITABLE FOR THESE APPLICATIONS |
|---|
| LIVING / LOUNGE ROOM |
| ENTERTAINMENT AREA |
| COUNTERS, KIOSKS & BARS |
| SHOPFRONTS |
| SHOPPING COMPLEXES |
| FACTORIES & WAREHOUSES |
| SPORTS / LEISURE CENTRES |
| PATIOS / BALCONIES / WINTERGARDENS |
Smartech Zero Line Folding Window features the full range of quality design features:
Customized Cladding
Proprietary Aluminum Extrusions
Color of your Choice
Stainless Steel Components
Comprehensive Sealing System
Manual only
Many Glazing Possibilities including Single and Double glazing with thermal break
Concealed Design
In order to successfully specify your Zero Line Folding Window please make sure to:
Advise Smartech of your cladding choice.
Make sure the rough opening is finished plumb, true and square.
Advise which glass solution you intend to use.
Specify the color.
Specify either powder coat or stainless steel hinges
